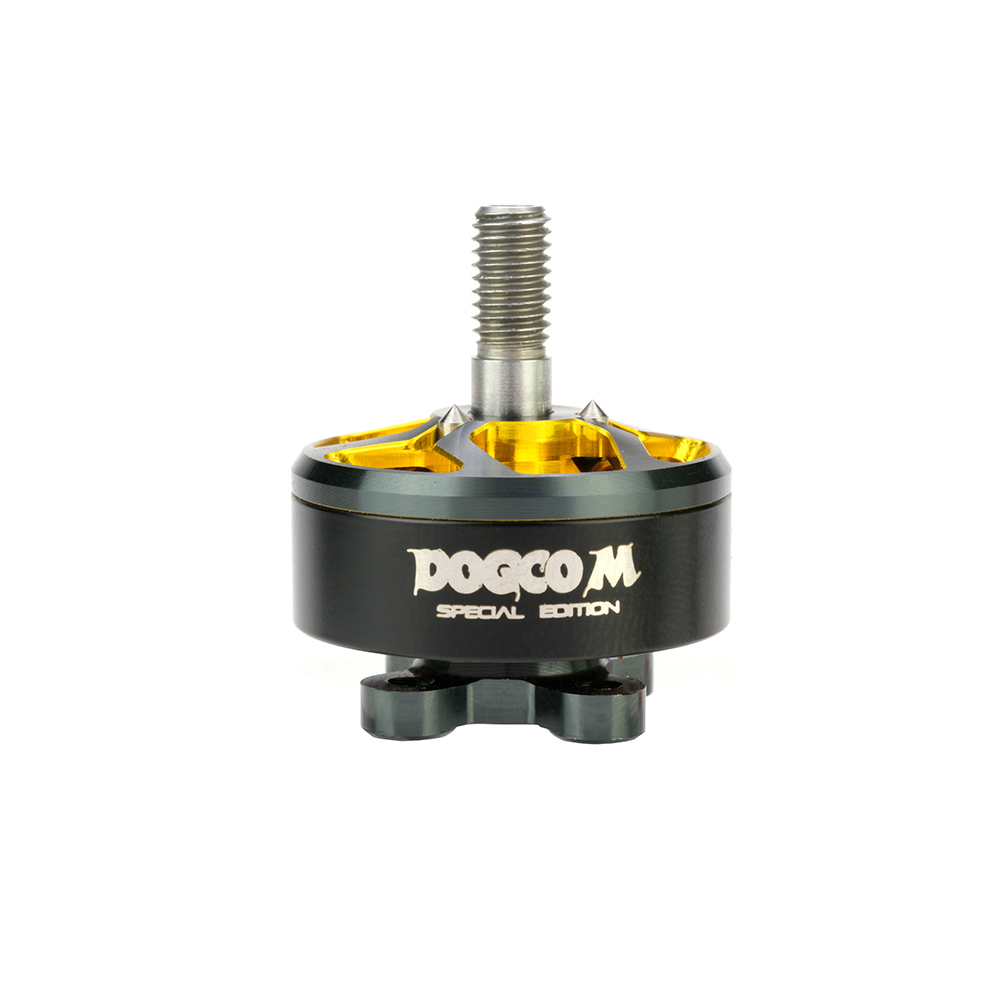

• DOGCOM motor

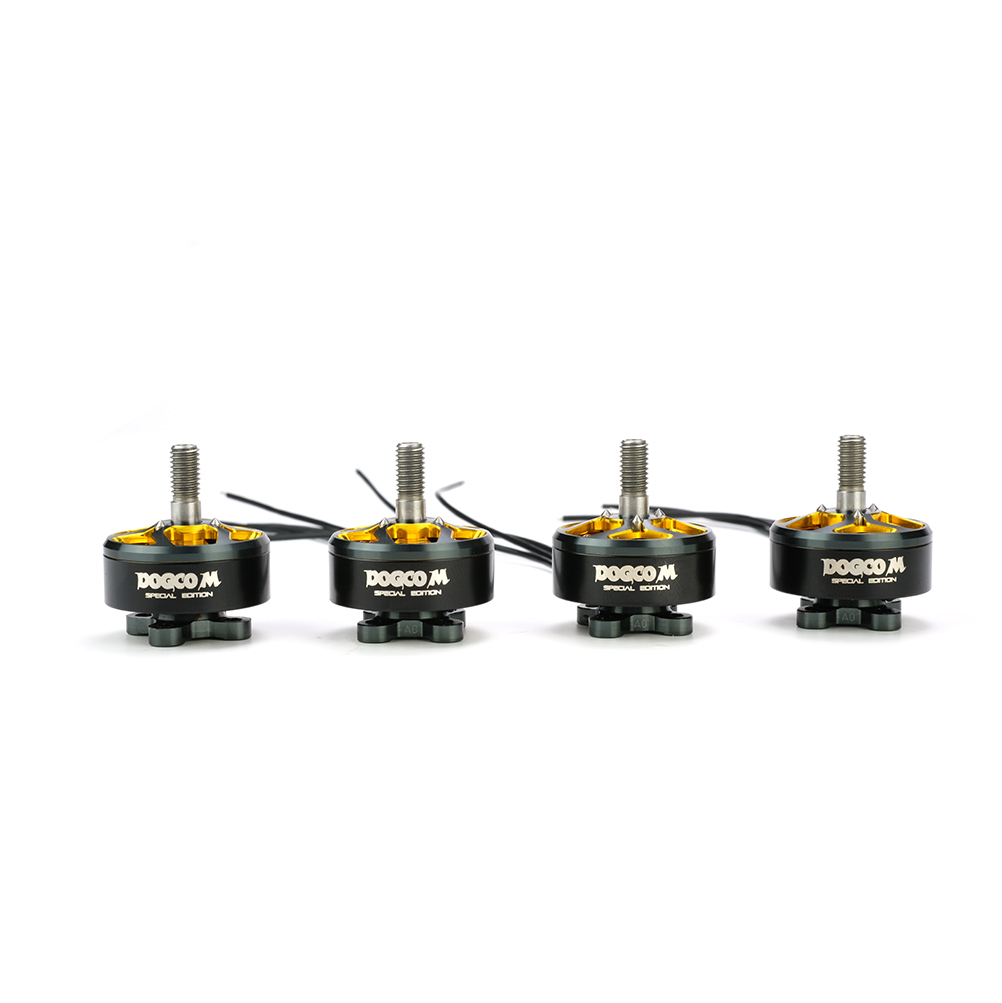

  • DOGCOM motor

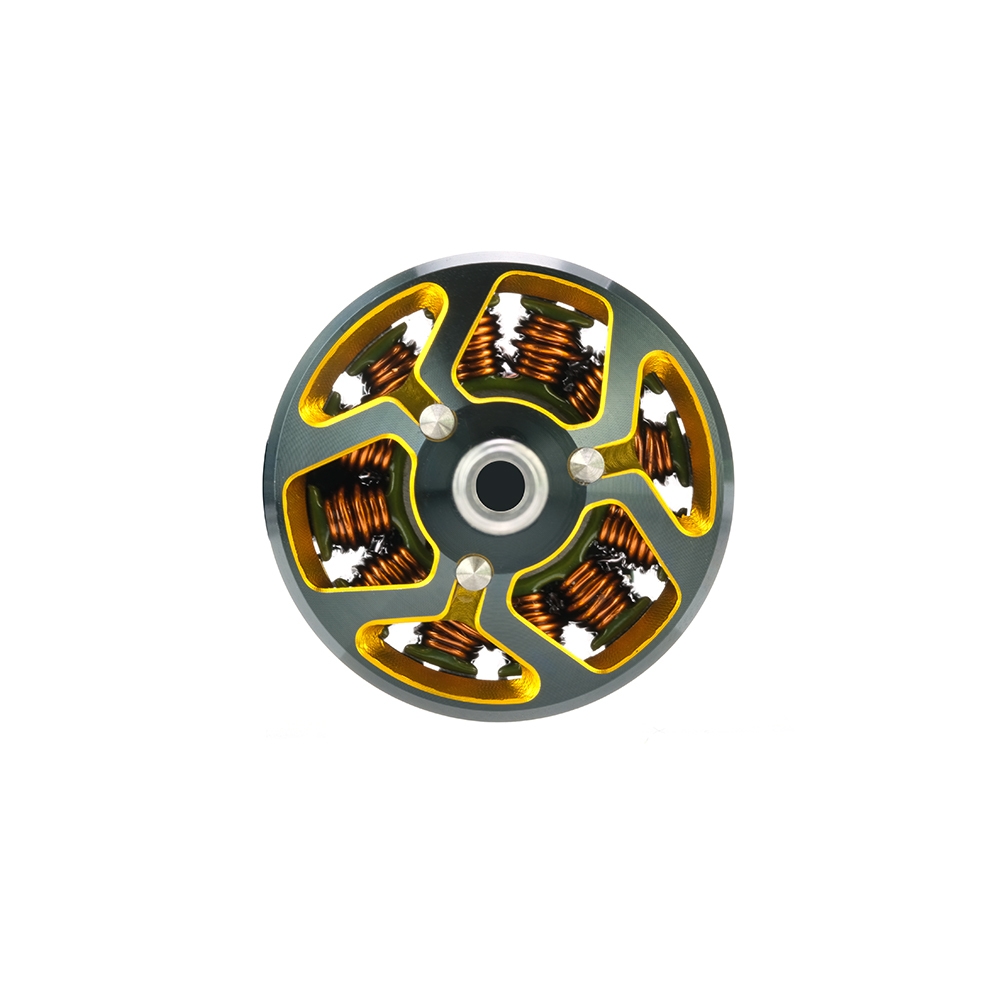

  • DOGCOM motor

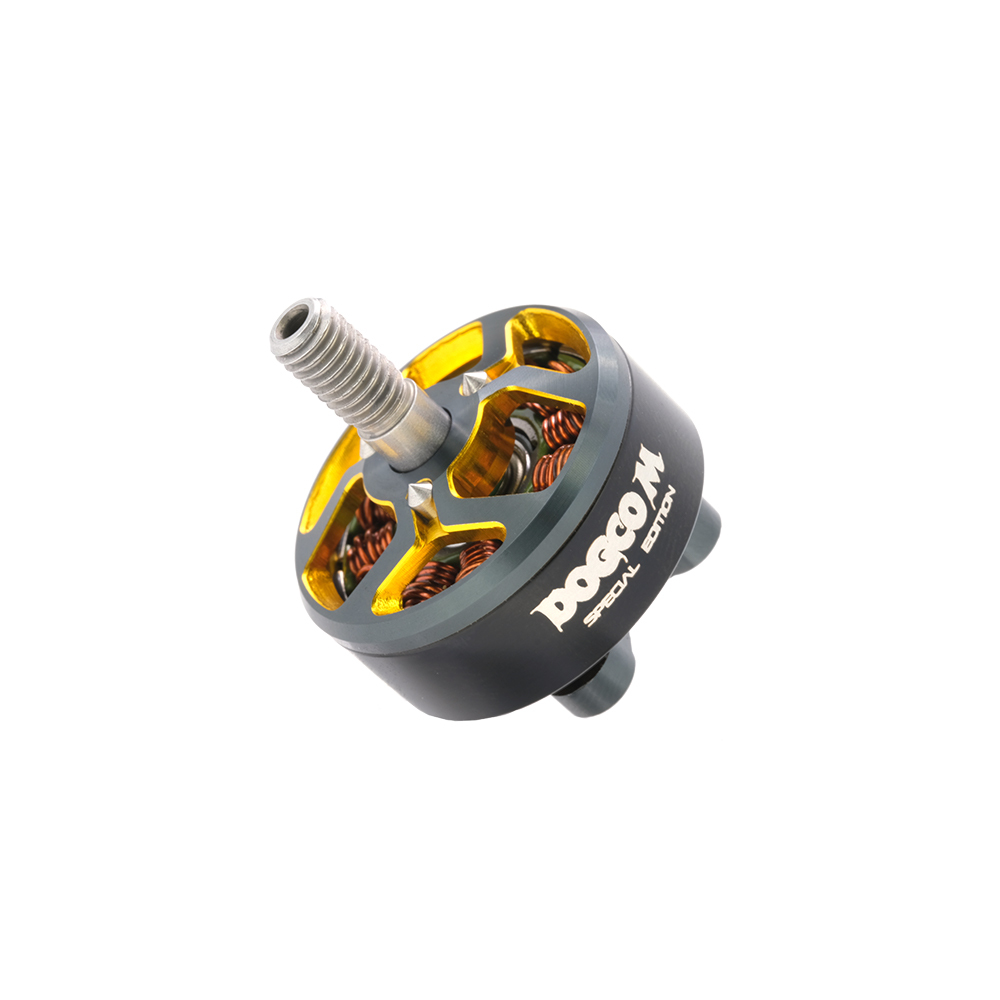

  • DOGCOM motor
SPECIFICATION

SPECIFICATION:

Product Model: DOGCOM 2207
KV: 1960
Configuration: 12N14P
Magnet: N52H
Stator Diameter: 22mm
Stator Height: 7mm
Shaft Diameter: Φ5
Size: Φ26.9mm*31mm
Lead Wires: 20#AWG 150mm
No. of Cells (LiPo): 2-6S
Max Continuous Power(W): 1081(25)
Max Current(25v): 43.5
Mounting Holes: 16mm x 16mm(M3)
Color: black & yellow
Weight: 29g
Suitable Quadcopter: 5-6inch


Feature:

- The DOGCOM motor has a super smooth feeling and consistency that benefits from the linear throttle curve.
- Lightweight structure, The weight of the motor trimming is only 29g.
- Thin laminated silicon steel sheet stator with high-temperature premium magnets, and high-efficiency magnetic design.
- The unique stainless steel pin structure ensures reliable locking of the propeller.
- The shaft is equipped with an impact buffer device, double NSK bearings, and a 12.9-level screw.
- Teflon wire with scratch-proof and wear-proof features.


WARNINGS

Read this user manual before use.

Thank you for using the DOGCOM motor. Please read the user manual before using the product and make sure you have fully understood the product.

Brushless motors are powerful and have high spinning speeds. Incorrect operation may result in product damage, property damage, and serious personal injury. DOGCOM does not take any responsibility for product damage caused by incorrect use of the product, nor is it liable for any form of personal injury or joint and several liability for direct and brief property losses.

Please always keep a safe distance from the high-speed spinning propellers. When performing any tune-up or adjustment, be sure to disassemble the propeller for operation, and check the motor running status before the official flight.

When installing the motor, please choose the appropriate length of screws, Forcibly installing too long screws will damage the windings and possibly serious malfunction.

The performance and setting of brushless ESC and flight control will directly affect the performance of the motor. Wrong settings may cause the motor to desync, high temperature or even burn.

This series of motors is recommended to be driven by an ESC with an output current of 50A or above. Fine-tuning the PID and filter settings of the flight controller can make the motor play the best performance and stay in cool status.

The crashing may cause different degrees of damage to the motor. If the motor rotor is deformed, does not rotate smoothly, abnormally high temperatures, phase loss, and other abnormal conditions, please stop flying immediately, unplug the battery, and check for replacement.

Since the motor is an open structure, the bearings, and other parts will cause corrosion and damage when exposed to water. Please avoid water during use, and do not clean the motor with water or organic solvents.
