SPECIFICATION

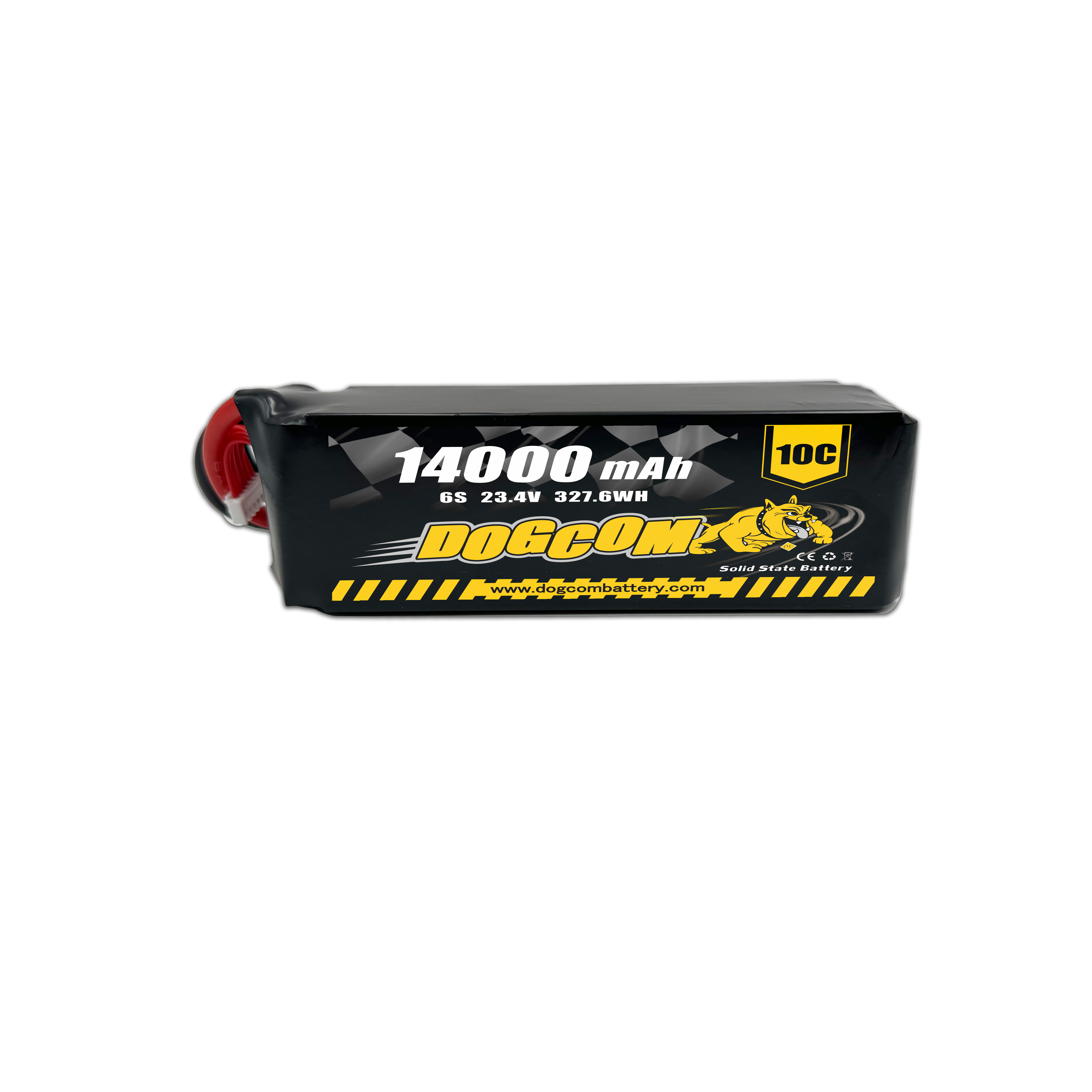

Battery Specifications:
- Brand: DOGCOM
- Type: Semi-Solid-State Lithium Battery
- Capacity: 14000mAh
- Configuration: 23.4V / 6S1P / 6 cells
- Nominal Voltage: 23.4V
- Full-Charge Voltage: 25.5V
- Continuous Discharge Rate: 6C
-Burst Discharge Rate: 10C
- Dimensions: T*W*L = 61*52*153mm
- Net Weight: about 920g
- Energy Density: 400Wh/kg
- Charge Plug: JST-XHR
- Discharge Plug: XT60
Usage Recommendations
- Recommended charging cut-off voltage: 4.455V per cell
- For maximum safety and lifespan, do not exceed 4.455V per cell during charging.
- Recommended flight cut-off voltage: 3.0V per cell .
-We suggest landing the aircraft when the cell voltage drops to around 3.0V to protect the battery and prolong its service life. The minimum cut-off voltage for a single cell is 2.55V.
- As a practical guideline, stopping discharge at approximately 80% of rated capacity. (For example, 14000mAh×0.8=11200mAh, at which point you should stop using it. Stopping use between 9800~1120mAh will result in a longer lifespan).
The 2.5V cut-off is the absolute minimum voltage for testing purposes only. For normal flight use, always follow the recommended 3.0V per cell landing voltage.
DOGCOM lipo battery Features:
- High & stable quality, Lower internal resistance, Longer life cycle.
- High energy density. Designed for applications where weight and energy storage are critical.
- Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.
- Stable automatic stacking technology.
Safety Package:
- Every DOGCOM lipo battery pack will be packed with a vibration-proof material battery box, so make sure you get your battery in very perfect condition.
Our Advantages:
- Strong production capacity: Our factory can make 40000 pieces of battery single cell per day. We have the ability to finish an order within 15 days at the earliest.
- Expertise: Engaging in the industry for a decade, our battery experts have accumulated rich knowledge & expertise in Lipo battery R&D, manufacturing, and even different market preferences.
- Quality assurance: All of our Lipo batteries strictly comply with the different standards for different Countries, such as UL Certification、CE Certification (testing standard: EN62133-2:2017) regulations, PSE Certification、KC Certification. As well as the shipping standard of UN38.3 Testing & MSDS.
